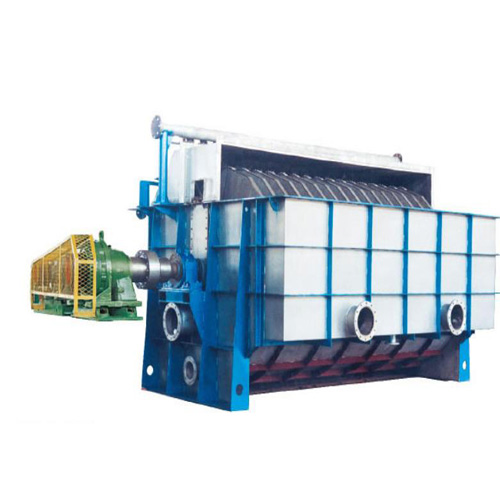

Disc Thickener
Description:
This disc thickener is mainly used in cleaning and thickening low-consistency pulp.Structure Features:
1. Compared with traditional gravity dehydrating machine, this disc thickener has much larger filtering area, more compact structure, and higher productivity.2. This thickening machine is equipped with stainless steel sector disc and tank body, which contributes to much cleaner pulp.
3. Reasonable washing and pulp-separating structure makes it difficult to block filtration mesh and has strong dehydrating capacity.
Main Technical Parameters:
| Type | Disc diameter (mm) | Number of disc | Nominal area (m2) | Feeding pulp consistency (%) | Discharging pulp consistency (%) | Productivity of one disc | Motor power (kw) | Overall dimensions (L×W×H) (mm) | |
| Wastepaper board (t/d) | Waste newspaper (t/d) | ||||||||
| ZNP2508 | Φ2500 | 8 | 60 | 0.8~1.2 | 3~4 | 9~12 | 5~7 | 7.5 | 4620×3960×3310 |
| ZNP2510 | 10 | 75 | 11 | 5200×3960×3310 | |||||
| ZNP2512 | 12 | 90 | 5700×3960×3310 | ||||||
| ZNP2514 | 14 | 105 | 15 | 6300×3960×3380 | |||||
| ZNP2516 | 16 | 120 | 6800×3960×3380 | ||||||
| ZNP3510 | Φ3500 | 10 | 150 | 18~24 | 10~14 | 22 | 5960×5210×4440 | ||
| ZNP3512 | 12 | 180 | 6560×5210×4440 | ||||||
| ZNP3514 | 14 | 210 | 30 | 7245×5210×4460 | |||||
| ZNP3516 | 16 | 240 | 7845×5210×4460 | ||||||
